应用领域与详细介绍：Purpose and introduction

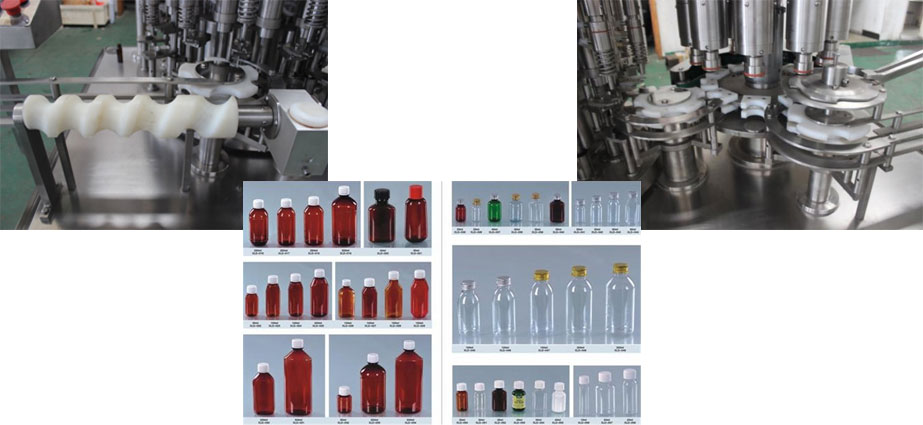

机器支持于对30-500ML型号安全玻璃酒瓶、朔料瓶的包装线封膜。按照往来账往来式活塞杆来包装线，磁感应振动送盖，可不行轧盖(复合式)或旋盖(朔料盖)封膜，可不行和前后轮的研发道工序设施快速连接組成研发线，除此之外可不行采购百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

特色：characteristic

装量合理，杜尽渗漏。缺瓶不灌装设备。 交流变频控速。 积极展现记数营养价值。 电脑整机均按GMP规范要求制作。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技巧产品参数/technical parameters：

型号 model	NQGX30-500
适宜标准Cutting dimension	30-500ml
产出意识Production capacity	80-200瓶/分（罐/min）80-200 bottles/min (cans/min)
包装精密度 Filling accuracy	≤±1%
开关电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
设备毛重 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
