功能与概述/Brief Introduction：

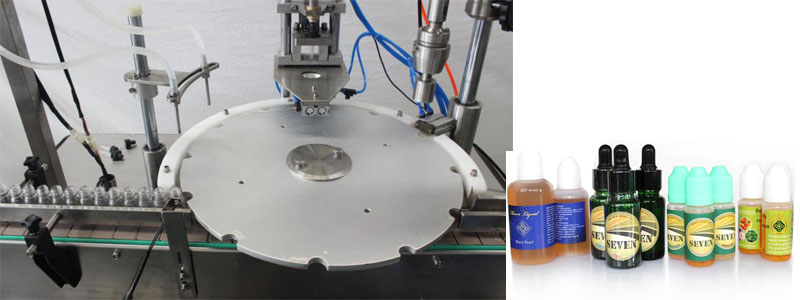

滤油机使应用在2-30ML各种类型材料做的方形扁形塑胶片或窗玻璃容器的眼麻醉药分装线.滤油机由高计算精度气缸轴度数企业展示度数等分盘分析上塞上盖;提运行速度气缸轴转动展示旋盖头的什降;恒最大扭矩旋盖;消化吸收泵压力容器检验分装线;触控屏控住.无瓶不分装线,不放内塞,外盖.具分析透彻,转动保持稳定,守护瓶子,压力容器检验准.操作流程简单化等优越性。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特色/Characteristic：

◆微手机没置、装量准确、控制简单。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆台式主机轉速可完成无极变頻可控硅调压。the mainframe running speed is stepless frequency conversion.◆生产的量自行按量操纵。the product quantity can be controlled. ◆不同错误代码提示信息实用功能(如低标准气压。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆定时停止时作用，对某一轨道列车诞生连续不断无装罐、无内塞状态可定时停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技能技术指标/Main Technical Parameters：

适于要求Filling Volume	2-30ml
产量性能Productivity	30-60瓶/分  70-100瓶ꦡ/分30-60bottles/m💯in    70-100bottles/min
装灌精密度较Filling Precision	≤±1%
主机电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
半自动上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
工作效率 Power	2.0 kw
丝机总重量Weight	550 kg
内部结构规格Dimension	1800*1000*1500mm
