应用场景与简洁：/Purpose and introduction

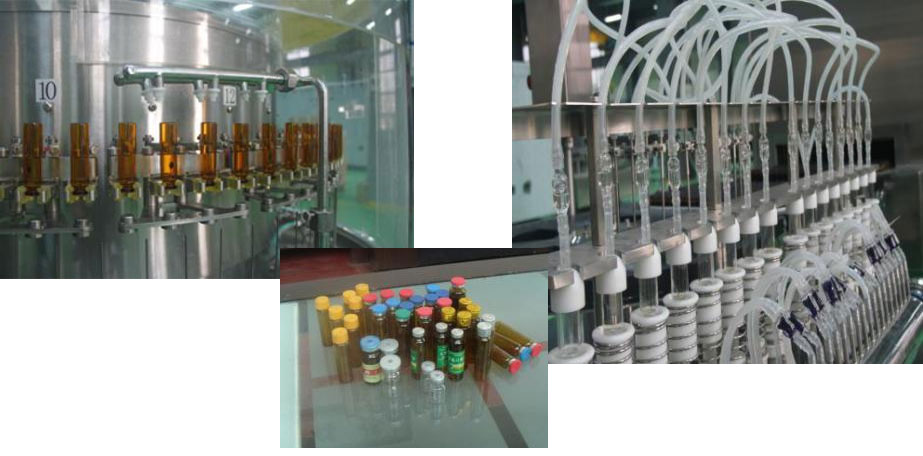

口服药方式药液洗烘灌轧互通线由柜式超音波波洗瓶机、隧道口式制热 循环系统无菌方法烘干阶段箱、口服药方式药液装灌轧盖机等根据，比较适合于 5-30ml 等各不相同规 格口服药方式药液瓶的的产生。可实现对医药的产生中安瓿瓶淋水、超音波波家电清洗、冲水、充 气、烘干阶段无菌方法、冷却塔、装灌、轧盖等艺布骤的互通运营。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优点:/characteristic

◆洗瓶机主要采用机械化手夹瓶，选用不同尺寸规格的小瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选取气水喷针反复追综读取手段，洗治疗效果优，勤俭节省能源系统。并有针架防晃动装制，挺高喷针读取小瓶的精确度度，避免断针状况时有发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶正个水汽聚氨酯保温管、喷针仍然独自连在一起，防止出现了相交污染源，合适GMP正确想要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前安装缓冲区块，有护理螺丝杆，下降碎瓶能力Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用整体风格進口一起带，接入拨块输送机口服方式液，使用稳定性是真的吗In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆真空烘箱使用红外线微波加铜管，不锈钢装饰管微波加铜管三层微波升温温湿度光滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆包装轧盖机可以配陶瓷厂家泵、不透钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆分装无瓶止灌，无瓶不轧盖系统。Pieces filling without bottle filling, no bottle no rolling function.◆整线所采用PLC总掌握、交流三菱变频器、触模屏掌握高技术，启动不稳定性准确。触模屏可提示各单机联机的启动模式，各掌握点的进水管、空气压力、压力、高温等提示，各触点开关模式和报警提示，报警自我认知测试和报警分享及在排除手段。使整个的产量过程中 满足主动化掌握，联线有三机自我控制动态平衡设施，确认产量多样化准确。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.按照其顾客的是需要，还可供配选：According to the needs of customers, but also available for selection:◆西门子模式、施耐德开关、三凌、台达等公司掌控模式；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压为、油温及mri波难度、颗粒激光束、风力线上加测、报警信号、记载、打印纸体系。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、没有细菌隔离霜器软件。Mixer ORABS, CRABS, aseptic isolator system.

技术性性能指标：technical parameters

符合金桥铜业跨接线的截面积大小Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装设备计算精度Filling accuracy(%)	≤ ± 2.5
灌装生产线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格证率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
